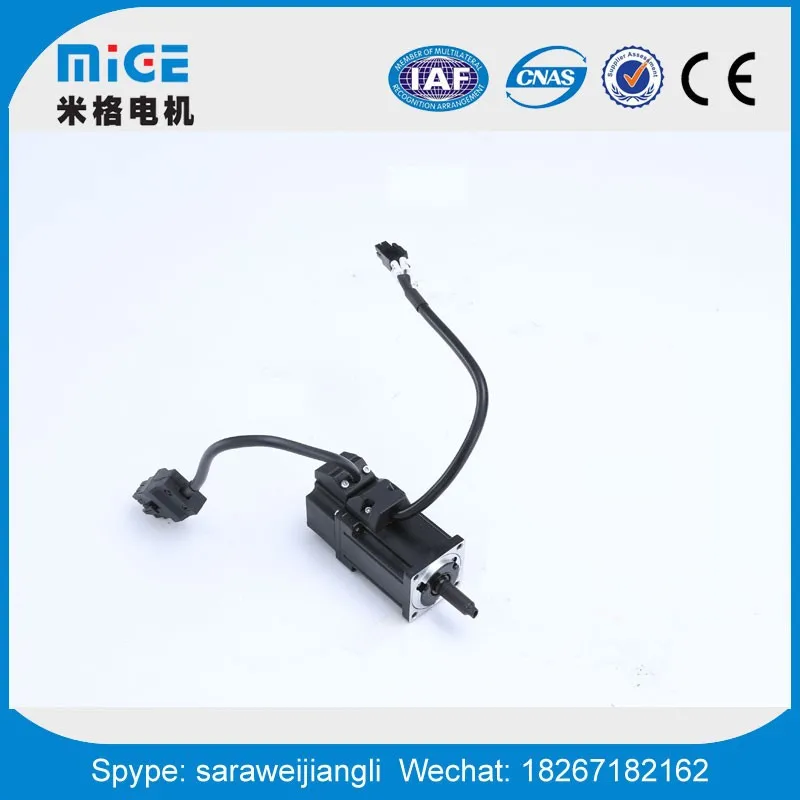

compact 40E series 0.32N.m 100W servo motor for robot

FOB Reference Price:Get Latest Price
$2.00 - $135.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
ME040-P32FFDA6-00B00
Output Power:
100W
Type:
Servo Motor
Frequency:
50/60Hz
Phase:
Single-phase
Certification:
CE
Protect Feature:
IP65
AC Voltage:
208-230 / 240 V
Efficiency:
IE 3
Rated Power:
100W
Rated Voltage:
220V
Rated Speed:
3000rpm

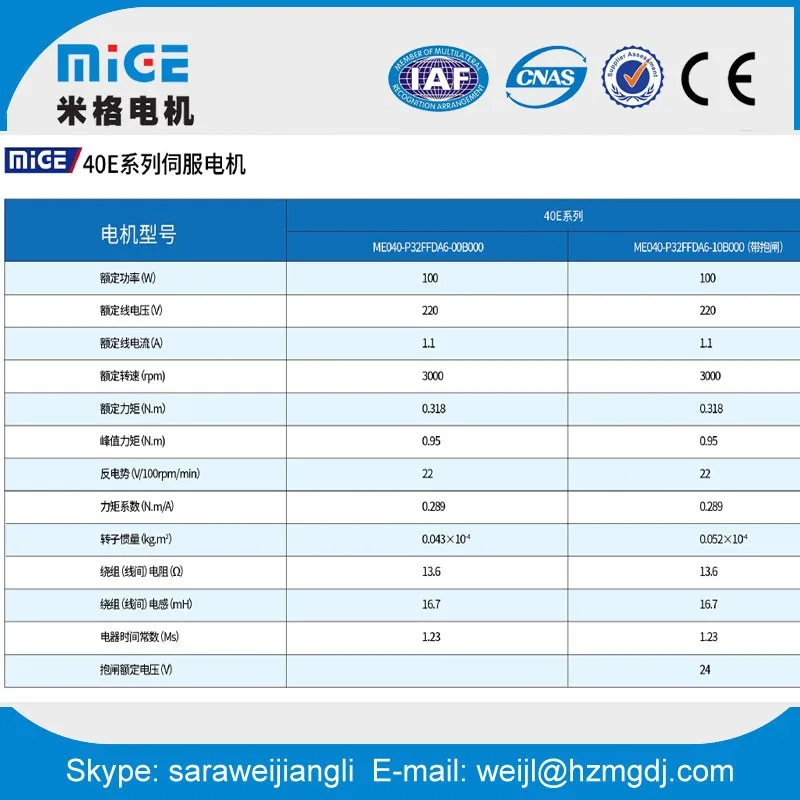

Holding torque:
0.318N.m
Rotor inertia:
0.043*10-4Kg.m2
Line-line Inductance:
16.7mH
Line-line Resistance:
13.6Ω
Encoder line number:
2500P/R
Insulation class:
Class F
Safety class:
IP65
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Be packed in inner bubble box+carton+polywood cases, which are agree to all kinds of transportation.
Port
China
Our company

Located in the Paradise City-Hangzhou, Hangzhou Mige Electric Co., Ltd is a manufacturer. The core products are AC servo motor, 2 and 3 phase step motor, spindle servo motor, and the matched drivers.

As for the AC servo motor, we have from 50W to 7.5KW;

As for the 2 phase step motor, the step angle is 1.8 degree. We have Nema17, 23, 34, 42;

As for the 3 phase step motor, the step angle is 1.2 degree. We have Nema17, 23, 34, 42, 52;

As for the spindle servo motor, we have 3.7KW, 5.5KW, 7.5KW, 9.5KW.

Besides, we also have the matched drivers.

Product Description
Detailed Images
The prodcts process
Packing & Delivery
Why choosing us
FAQ
Q: Can I get a sample for testing?
A: Of course. However, you can only get the sample after paying for it.
Q: How about the quality of your goods?
A: You can rely on the quality of our goods. We have our own  inspection team. We will never release even one piece before a serial of testing.
Q: If the specification above you give me is not the one I want, is there any possibility that we can make a business?
A: We have our R&D team. Our aim is to make the motor and drives according to your needs. Please provide us your Installation Dimension, as well as the important specification, then we will consider whether we can make it.
Q: How long can you guarantee the motor and driver?
A: we can give you one year guarantee. Also during the usage of them, if you have any question, we will be always here for you. We would try our best to help you.
Q: what is the shipping methords?
A: If you only want some samples for testing, we use the international express. Like DHL, UPS, TNT, FEDEX. If you want to buy many pieses, we deliver them by sea. It can be discussed.
Contact Us

Contact

We are sincerely advising you to visit our factory.

If you have any interests or questions, please feel to contact Jiangli Wei. She will be always here to help you.


Best Regards and have a good day!
