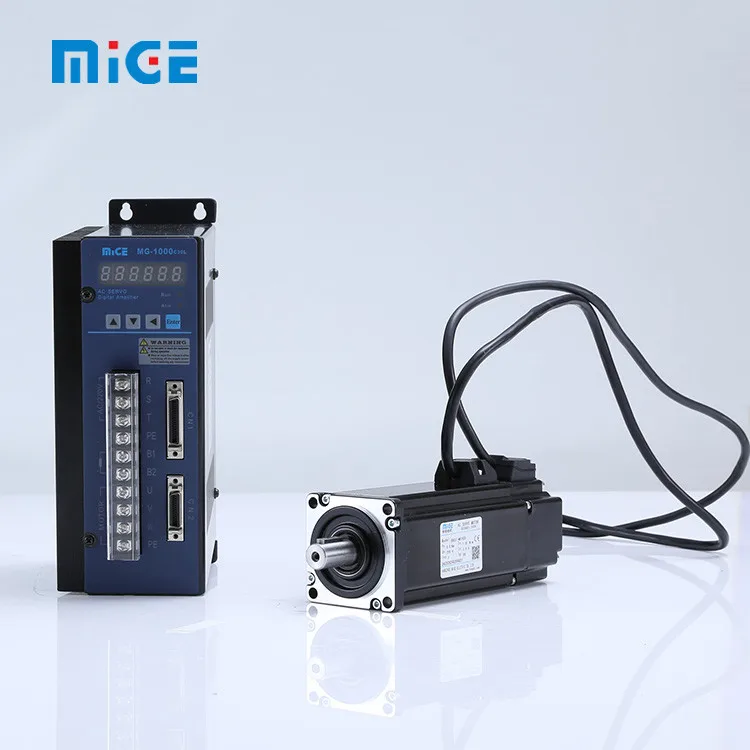

low price 60mm 400W Mige permanent magnet AC servo motor and driver

FOB Reference Price:Get Latest Price
$265.00 - $300.00 / Sets | 1 Set/Sets (Min. Order)
Samples - $260.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
60CST-M01330+MG1000C20L
Output Power:
400W
Type:
AC servo motor
Frequency:
50/60Hz
Phase:
Single-phase
Certification:
CE
Protect Feature:
IP 65
AC Voltage:
208-230 / 240 V
Efficiency:
IE 3
Rated Voltage:
220v
Rated Speed:
3000RPM
Rated torque:
1.27N.m
Rotor inertia:
0.29*10-4Kg.m2
Line-line resistance:
2.35Ω
Line-line Inductance:
14.5mH
Encoder line number:
2500rpm
Insulation class:
Class F
Safety class:
IP65
Rated current:
2.8A
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Be packed in bubble box+carton+wooden cases, which are agree to all kinds of transportation.
Port
China
Our company

Located in the Paradise City-Hangzhou, Hangzhou Mige Electric Co., Ltd is a manufacturer. The core products are AC servo motor, 2 and 3 phase step motor, spindle servo motor, and the matched drivers.

As for the AC servo motor, we have from 50W to 7.5KW;

As for the 2 phase step motor, the step angle is 1.8 degree. We have Nema17, 23, 34, 42;

As for the 3 phase step motor, the step angle is 1.2 degree. We have Nema17, 23, 34, 42, 52;

As for the spindle servo motor, we have 3.7KW, 5.5KW, 7.5KW, 9.5KW.

Besides, we also have the matched drivers.

Product Description
Detailed Images
The prodcts process
package and delivery
FAQ
Q: Can I get a sample for testing?
A: Of course. However, you can only get the sample after paying for it.
Q: How about the quality of your goods?
A: You can rely on the quality of our goods. We have our own  inspection team. We will never release even one piece before a serial of testing.
Q: If the specification above you give me is not the one I want, is there any possibility that we can make a business?
A: We have our R&D team. Our aim is to make the motor and drives according to your needs. Please provide us your Installation Dimension, as well as the important specification, then we will consider whether we can make it.
Q: How long can you guarantee the motor and driver?
A: we can give you one year guarantee. Also during the usage of them, if you have any question, we will be always here for you. We would try our best to help you.
Q: what is the shipping methords?
A: If you only want some samples for testing, we use the international express. Like DHL, UPS, TNT, FEDEX. If you want to buy many pieses, we deliver them by sea. It can be discussed.
