textile machine parts 90mm 750w 3000rpm servo motor

FOB Reference Price:Get Latest Price
$295.00 - $345.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
90ST-M02430 and MG1000C-30L
Type:
Servo Motor
Frequency:
50 hz
Output Power:
750w
Protect Feature:
Drip-proof
Phase:
Three-phase
Certification:
CE
AC Voltage:
208-230 / 240 V
Efficiency:
IE 3
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in carton orplywood case
Port
China
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 To be negotiated

Textile machine parts have a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.



They are widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.



Specifications:



Motor model

90ST-M02430

Rated power(W)

750

Rated voltage(V)

220

Rated current(A)

3

Rated speed(rpm)

3000

Holding torque(N.m)

2.4

Peak torque(N.m)

7.1

Voltage constant(V/1000r/min)

48

Torque coefficient(N.m/A)

0.8

Rotor inertia(Kg.m)

2.4×10-4

Phase Resistance(Ω)

2.88

Phase Inductance(mH)

6.4

Machanical time-constant(Ms)

2.22

Weight(Kg)

2.86

Encoder line number(PPR)

2500

Insulation class

Class B(130 degree)

Safety class

IP65

The operating

of Evironmental Conditions

       Temperature: -20 ~ +50 degree

       Humidity: Below 90%RH No dewing

Motor winding

plue

Winding lead wire

U(red)

V(yellow)

W(blue)

PE(yellow, green/black)

Plug serial numberr

1

2

3

4

Encoder plug

Signal lead wire

5V

0V

B+

Z-

U+

Z+

U-

A+

V+

W+

V-

A-

B-

W-

PE

Plug serial number

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1







Please contact with us for more detailed technical information.



We can design according to clients' requirements.



90ST-M02430 Detail Drawing

EP1 and EP2 driver connection

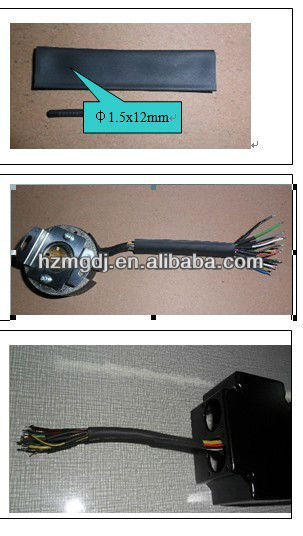

80mm and 90mm parts 180mm and 90mm parts 280mm and 90mm parts 380mm and 90mm parts 580mm and 90mm rotor

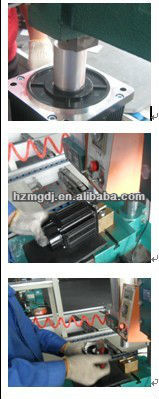

PackageApplicationsAlllications 2Manufacturing FacilitiesInspection and Testing CapabilitiesPromotion
