stepping motor

FOB Reference Price:Get Latest Price
$23.00 - $59.00 / Piece | 1 Piece/Pieces (Min. Order)
Step Angle(degrees):
1.8
Holding Torque:
3.3~12NM
Lead Time:
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
mige
Model Number:
F86-HXX
Phase:
2, Three Phase
Type:
Permanent Magnet
Certification:
CE, ISO
Current / Phase:
2.8A/4.2A
Usage:
Universal
Function:
Control
Structure:
Synchronous Motor
Speed:
Variable Speed
Power:
DC
Protect Feature:
IP54
Shape:
Square
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in plywood case or carton
Port
China
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 5 To be negotiated
Video Description



Size 86mm Stepping motor is a brushless, synchronous electris motor that can divide a full rotation into a large number of steps. The motor's position can be controlled precisely, without any feedback mechanism.

Electric Parameters:





Model

F86-H65

F86-H80

F86-H118

F86-H150

Step Angle(°)

          1.8

Length L(mm)

 65

  80

  118

   150

Holding torqueN.m

   3.3

  4.5

  8.5

   12

Current(A/phase)

   2.8

  4.2

  4.2

   4.2

Resistance (Ω)

   1.4

  0.8

  1.2

   1.25

Inductance(mH)

   3.9

  3.4

  6.0

   8.0

Rotor inertia(g.cm2)

  1000

  1400

 2700

   4000

Weight( kg)

  1.7

  2.3

 3.8

   5.4





Please contact with us for more detailed technical information.



We can design according to clients' requirement.

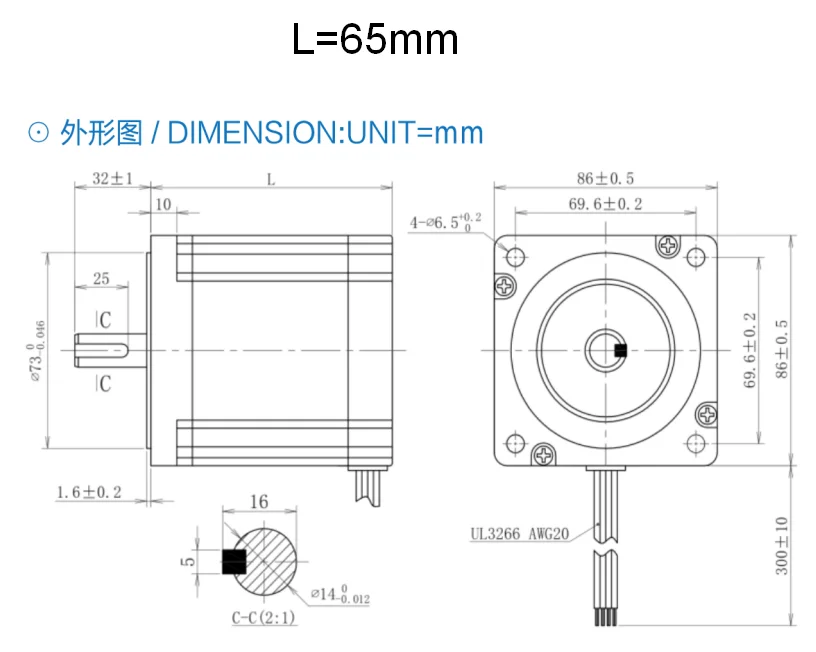

F86-H65

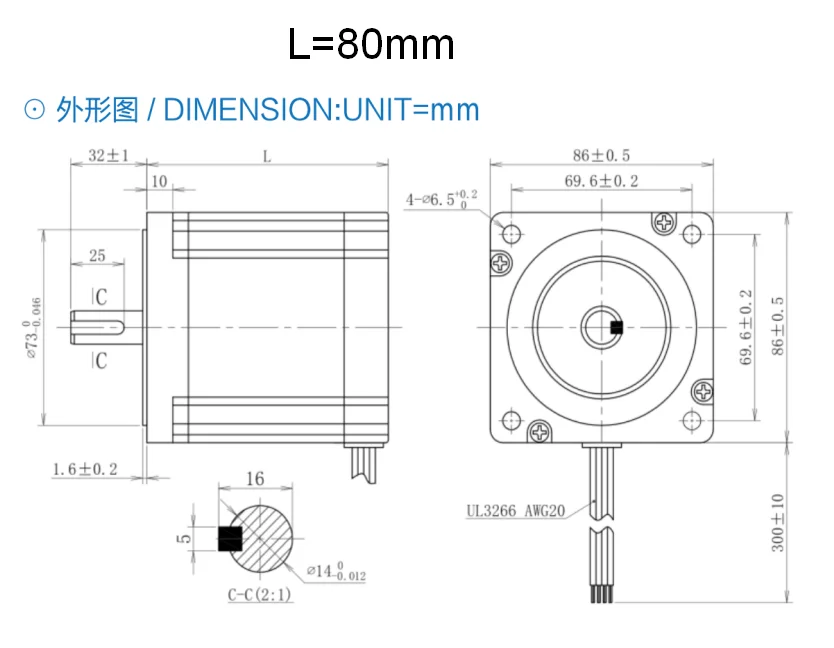

F86-H80

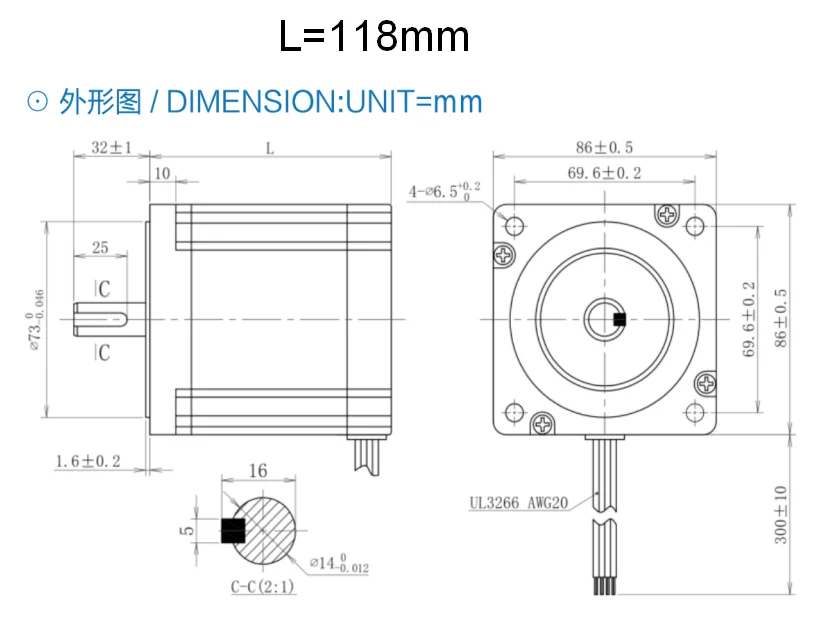

F86-H118

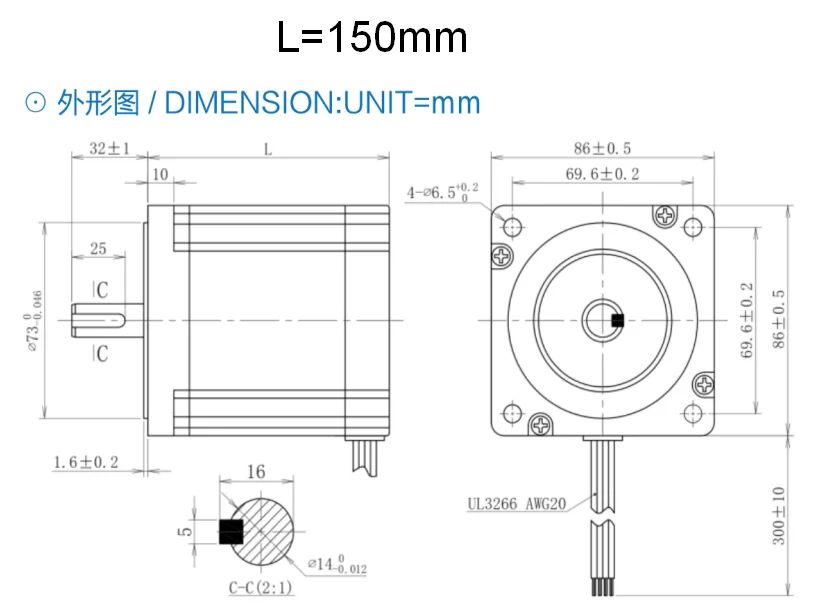

F86-H150

86
