8.5Nm NEMA34 BYG hybrid magnet stepping motor

FOB Reference Price:Get Latest Price
$69.00 - $95.00 / Pieces | 1 Piece/Pieces (Min. Order)
Step Angle(degrees):
1.8 degree
Holding Torque:
8.5 NM
Lead Time:
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MGE
Model Number:
FHB86-118 & DHBQ2078A
Phase:
2
Type:
Hybrid
Current / Phase:
4.2 A
Certification:
CE
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in carton or plywood case
Port
China
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 5 To be negotiated
Video Description

NEMA34 BYG hybrid stepping motor 3 kits has such advantage as high efficiency, energy-saving, low noise, low vibration, "high start torque","low start current" and reliable performance. They are easy for installation and maintenance





NEMA34 BYG hybrid stepping motor 3 kits engine specifications:



Model

FHB86-118

Step Angle(°)

1.8

Length L(mm)

118

Holding torque(N.m)

8.5

Current (A/phase)

4.2

Resistance(Ω)

1.2

Inductance (mH)

6.0

Rotor inertia (g.cm2)

2700

Weight (kg)

3.8

Step accuracy

5%

Temperature

80 degree   Max

Environmental temperature

-20 ~ +50 degree

Insulation resistance

100MΩ   Min 500 V DC

Withstand voltage

500V AC 1minute

Shaft Radial Play

0.02mm Max.(450g-load)

Shaft Axial Play

0.08mm Max.(450g-load)

Shaft diameter (mm)

12.7

Shaft length (mm)

32



HBQ2068D driver feature,

1) High performance, low price

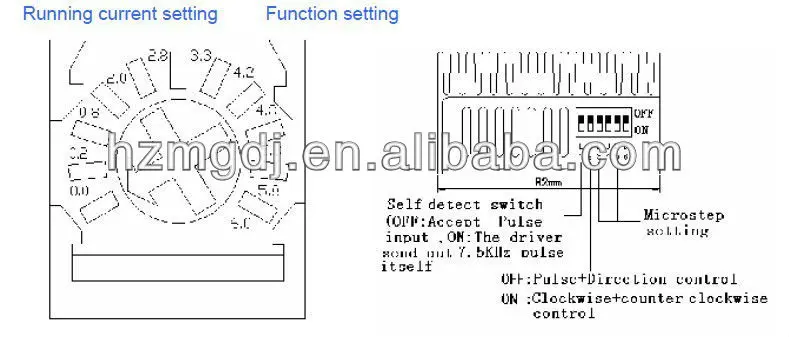

2) Provides 12/8 kinds of microstep selection ,upmost microstep can

be set to 200x, which makes the motor run smoothly, enhance

resolution.

3) Special circuit design ,reduce noise, enhance steadiness.

4) Once the pulse stops for 100ms ,the phase current will automatically

cut by half, which can reduce chances of overheat.

5) Bipolar constant current chopper control

6) Photocoupler isolated input/output

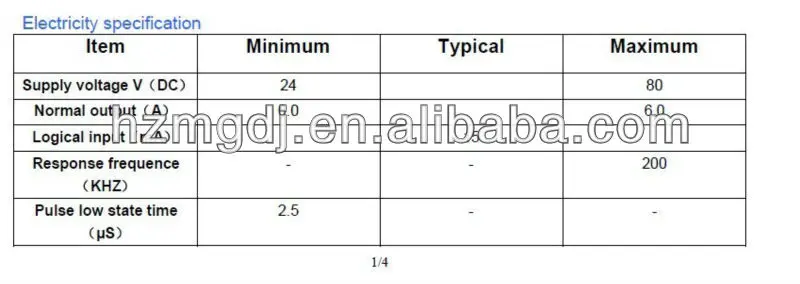

7) Adjustable phase current range from 0.2A ~6.0A

8) Can drive any two phase hybrid step motor whose phase current

under 6.0A

9) Single power input, voltage range from DC24-80V

10) The upmost pulse response frequence amounts to 200Kpps





Please contact with us for more detailed technical information.

We can design according to clients' requirements.
