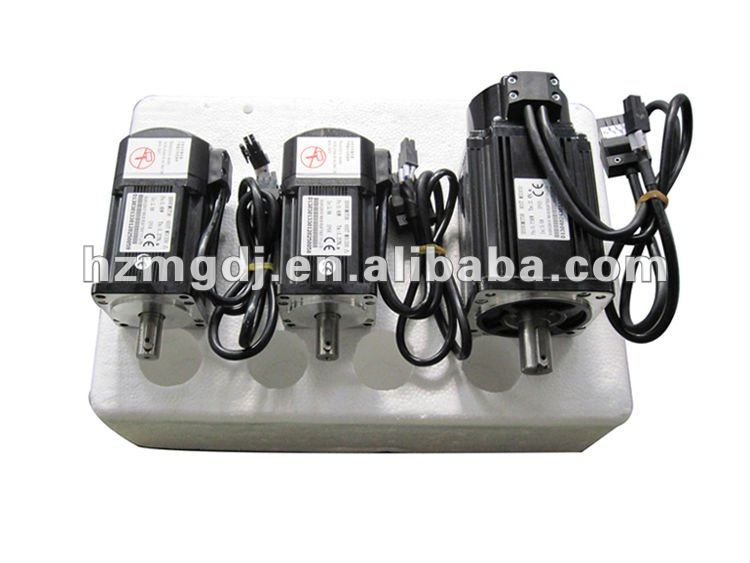

2 sets 400w electric motor kits and 1 set 750w servo kit

FOB Reference Price:Get Latest Price
$595.00 - $645.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MIGE
Model Number:
60CST-M01330 & SDB08NK8
Output Power:
400w & 750w
Type:
Servo Motor
Frequency:
50 hz
Phase:
Single-phase
Certification:
CE
Protect Feature:
Drip-proof
AC Voltage:
208-230 / 240 V
Efficiency:
IE 3
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in carton or pylwood case
Port
China
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 To be negotiated

2 sets 400w electric motor kits and 1 set 750w servo kit has a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.



They are widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.



Motor model

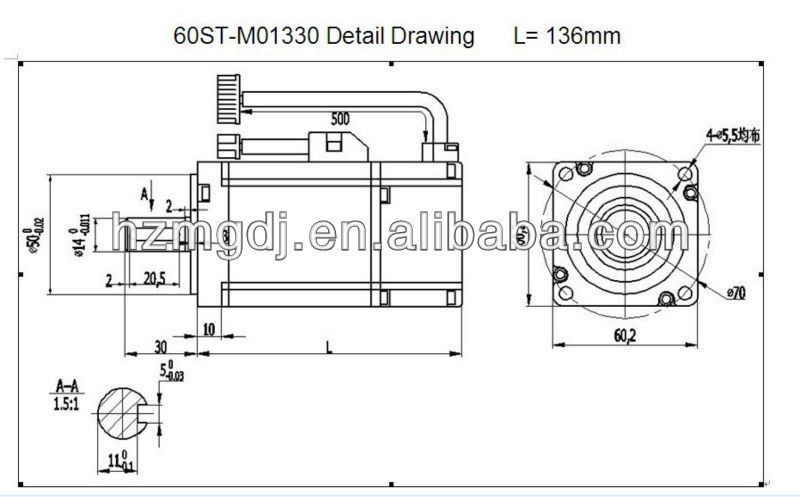

60ST-M01330C

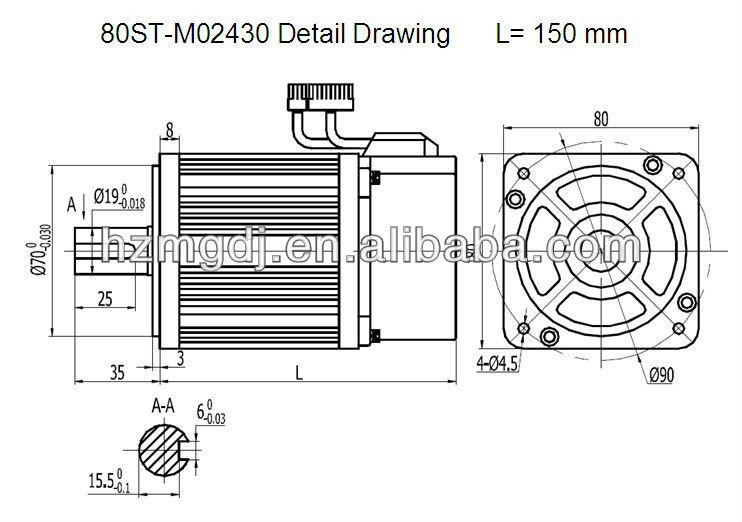

80ST-M02430

Rated power(w)

400

750

Rated current(A)

2.8

3

rated speed(rpm)

3000

3000

Rated torque(N.m)

1.27

2.4

Peak torque(N.m)

3.9

7.1

Voltage constant (V/1000r/min)

29.6

48

Moment coefficient(N.m/A)

0.45

0.8

rotor inertia(Kg.m2)

0.29 x 10-4

1.82 x 10-4

Resistance line-line (Ω)

2.35

2.88

Inductance line-line(mH)

14.5

6.4

Electrical time constant(ms)

6.17

2.22

Encoder line(PPR)

2500

2500

Pole-pairs

4

4

Weight(KG)

1.63

2.86

Insulation class

Class B (130 degree)

Grade of Protection

IP64 & IP65

The operating of Evironmental conditions

Temperature

-20 ~ + 50 degree

Humidity

Below 90%RH No dewing

Environment

Far away active gas, combustible gas, oil drop,ash.
