New design 400w AC Synchronous servo motor and controller for kitting machine

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    $329.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGE
Model Number:
60ST-M01330C & EP1-TL10F
Output Power:
400w
Type:
Servo Motor
Frequency:
60 hz
Phase:
Three-phase
Certification:
CE
Protect Feature:
Drip-proof
AC Voltage:
208-230 / 240 V
Efficiency:
IE 3
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packed in wood case or carton
Port
China

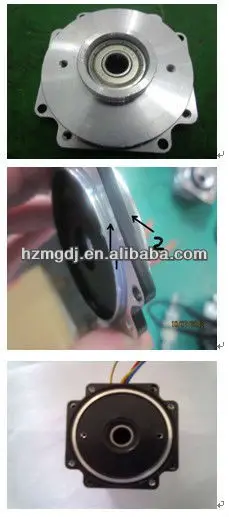

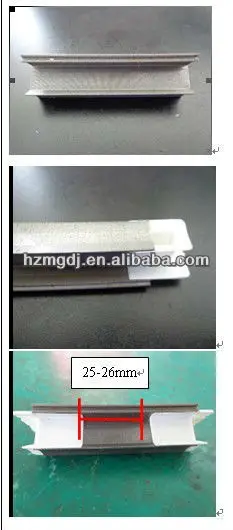

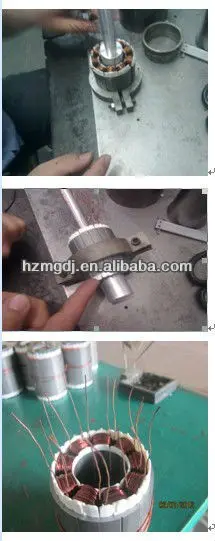

New design 400w AC Synchronous servo motor and controller for kitting machine has a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.



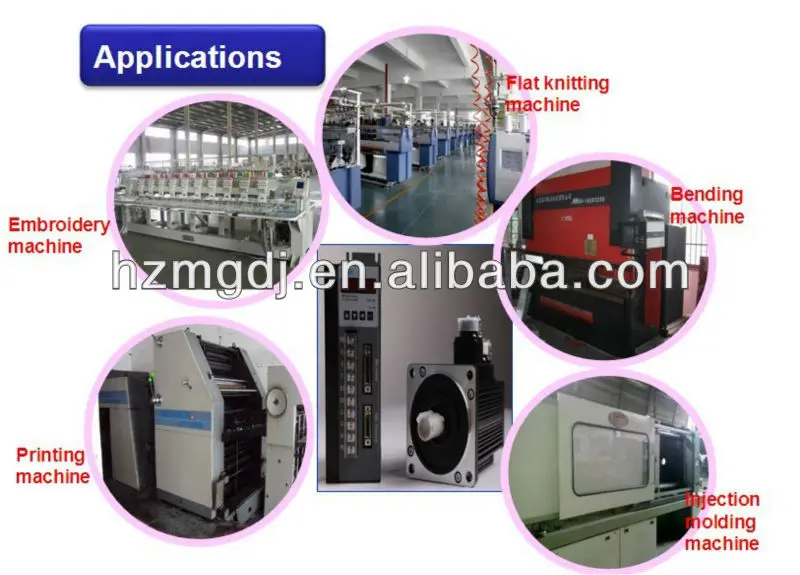

They are widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.



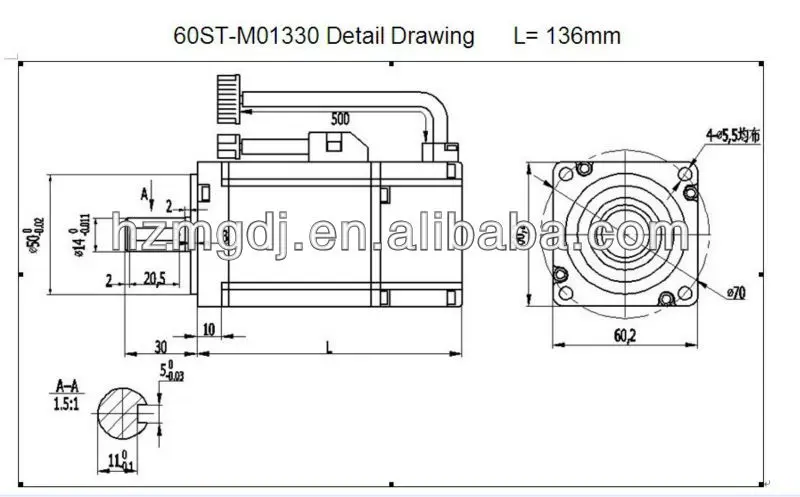

Specifications:



Motor model

60ST-M01330C

Rated power(W)

400

Rated voltage(V)

220

Rated current(A)

2.8

Rated speed(rpm)

3000

Holding torque(N.m)

1.27

Peak torque(N.m)

3.9

Voltage constant(V/1000r/min)

29.6

Torque coefficient(N.m/A)

0.45

Rotor inertia(Kg.m)

0.292×10-4

Phase Resistance(Ω)

2.35

Phase Inductance(mH)

14.5

Machanical time-constant(Ms)

6.17

Weight(Kg)

1.63

Encoder line number(PPR)

2500

Insulation class

Class B(130 degree)

Safety class

IP65

The operating

of Evironmental Conditions

                                 Temperature: -20 ~ +50 degree

                                 Humidity: Below 90%RH No dewing

Motor winding

plue

Winding lead wire

U(red)

V(yellow)

W(blue)

PE(yellow, green/black)



Plug serial numberr

1

2

3

4



Encoder plug

Signallead wire

5V

0V

B+

Z-

U+

Z+

U-

A+

V+

W+

V-

A-

B-

W-

PE

Plug serial number

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1



Control



Functions



Position





Control

External input pulse

Pulse/direction, CW/CCW, A/B 2-phase

Maximum command pulse frequency

500Kpps(differential input)

Electrical gear

1/1800~1800 (Recommend:1/50~50)

Command pulse input disable

Command pulse input is disabled when the corresponding bit is effective and can be set through parameters.

Internal position command

16 kinds of position setting

Speed

control

External speed reference

0~±10V DC

Zero speed clamp

Speed is controlled to zero by this function.

Speed control range

1~3000

Internal speed reference

4 kinds of speed reference setting

Torque control

External torque command

0~±10V DC

Internal torque command

4 kinds of torque setting

Torque control range

External torque command: 0~300%

Internal torque command: 0~300%

Drive disable

When signal CCWL/CWL is active, motor keeps zero-speed and maintains the torque in CCW/CW direction.

Monitoring function

Speed, position, command pulse accumulation, position error, motor torque, motor current, rotor position, command pulse frequency, operation status, input/output terminal signal

Protection function

Over-voltage, low-voltage, over-current, over-speed, over-load, Z-pulse missing, encoder error, EEPROM error, position error exceed.

Alarm function

Output alarm signal when abnormal operation happens. All 5 LEDs’ decimal points keep blinking at the same time.

Signal display

ON/OFF status of the I/O signal are displayed

Gain tuning

Gain can be adjusted to improve the motor performance when motor is running or stop.

Alarm record

4 alarm records including the present one are memorized.
