130ST-M10010 servo motor system for motorcycle race

FOB Reference Price:Get Latest Price
$330.00 - $430.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
MiGe
Model Number:
130ST-M10010
Output Power:
1000W
Type:
Servo Motor
Frequency:
50-60hz
Phase:
Three-phase
Certification:
CCC, CE
Protect Feature:
Totally Enclosed
AC Voltage:
208-230 / 240 V
Efficiency:
IE 3
rated power(W):
1000
holding torque(N.m):
10
Power:
AC
Usage:
Universal
Speed:
Variable speed
Function:
Control
Structure:
Synchronous Motor
shape:
Square
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in plywood case or carton
Port
Shanghai/Ningbo

130ST-M10010 servo motor system for motorcycle race




Product Description.


Specifications(130 series servo motor)


Motor model

130ST-M10010

Rated power(W)

1000

Rated voltage(V)

220

Rated current(A)

4.5

Rated speed(rpm)

1000

Holding torque(N.m)

10

Peak torque(N.m)

20

Voltage constant(V/krpm)

140

Torque coefficient(N.m/A)

202

Rotor inertia(Kg.m²)

1.94×10-3

Phase Resistance(Ω)

2.7

Phase Inductance(mH)

8.8

Machanical time-constant(Ms)

3.26

Weight(Kg)

10.2

Encoder line number(PPR)

2500

Insulation class

Class F

Safety class

IP65

The operating

of Environmental Conditions

Temperature: -20 ~ +50 Celsius degree

HumidityBelow 90%RH No dewing

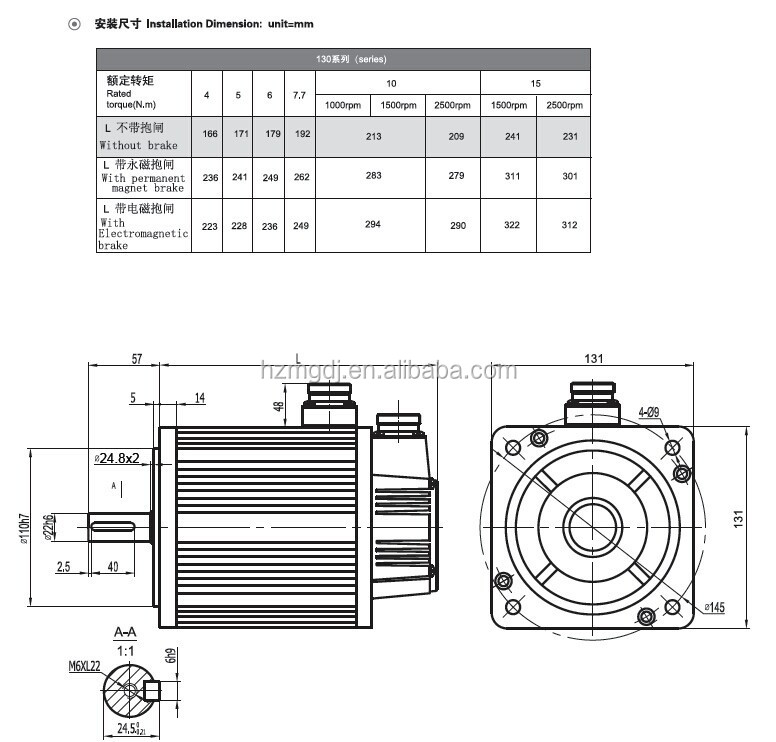

Installation Dimension:unit=mm
