3KW 2000rpm 150mm flange size ac servo motor for machine use

FOB Reference Price:Get Latest Price
$300.00 - $400.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
MiGe
Model Number:
150ST-M15020
Output Power:
3000
Type:
Servo Motor
Frequency:
50-60hz
Phase:
Three-phase
Certification:
CCC, CE, ISO,BV
Protect Feature:
Totally Enclosed
AC Voltage:
208-230 / 240 V
Efficiency:
IE 3
rated power(W):
3000
rated voltage(V):
220
rated current(A):
14
holding torque(N.m):
15
Weight(Kg):
15
Power:
AC
Usage:
Universal
Speed:
Variable speed
Function:
Control
Structure:
Synchronous Motor
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in plywood case or carton
Port
CHINA

3KW 2000rpm 150mm flange size ac servo motor for machine use




Product Description.


Specifications(150 series servo motor)



Motor model

150ST-M15020

Rated power(KW)

3.0

Rated voltage(V)

220

Rated current(A)

14

Rated speed(rpm)

2000

Holding torque(N.m)

15

Peak torque(N.m)

30

Voltage constant(V/1000r/min)

70

Torque coefficient(N.m/A)

1.07

Rotor inertia(Kg.m²)

3.88*10-3

Line-line Resistance(Ω)

0.34

Line-line Inductance(mH)

1.55

Mechanical time-constant(Ms)

4.56

Weight(Kg)

15

Encoder line number(PPR)

2500

Insulation class

Class F

Safety class

IP65

The operating of

Environmental conditions

Temperature:-20°C~+40°C

Humidity: Below 90%RH No dewing

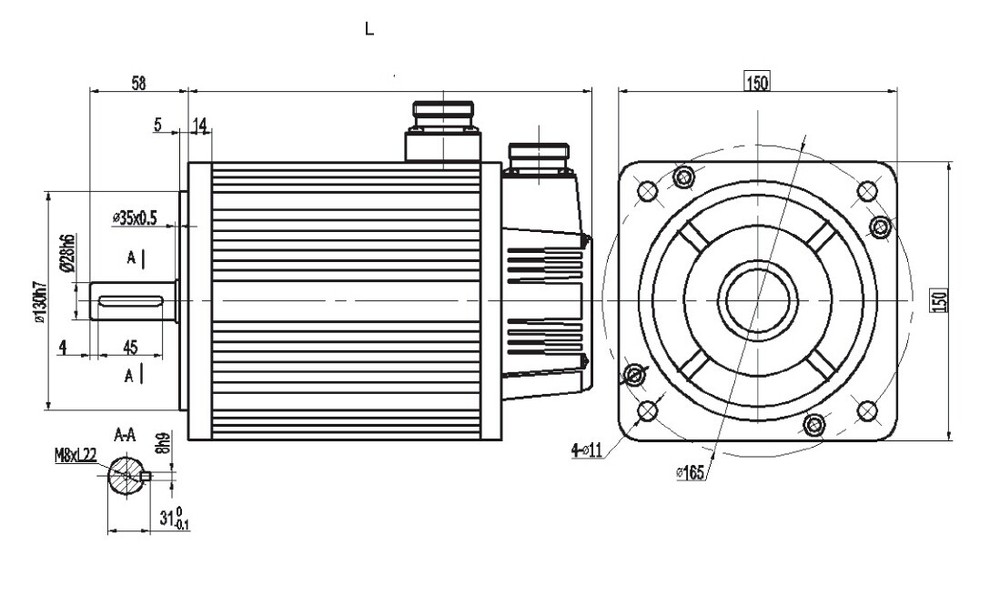

Installation Dimension:unit=mm



Motor Model150 series
Rated torque(N.m)15182327
2500rpm2000rpm
Withour brake230230248278302
With Electromagnetic brake303303321351375
