three phase ac power 110mm stepper motor

FOB Reference Price:Get Latest Price
$80.00 - $100.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Mige
Model Number:
FHB31122
Step Angle(degrees):
1.2
Holding Torque:
20N.m
Phase:
3
Type:
Hybrid
Current / Phase:
6.9A
Certification:
CE, ISO
shaft diameter(mm):
19
rated voltage(V):
220
rated current(A):
6.9
holding torque(N.m):
20
Weight(Kg):
10.7
Usage:
Universal
Speed:
Variable speed
Function:
Control
Structure:
Synchronous Motor
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in plywood case or carton
Port
Shanghai/Ningbo

 three phase  ac power 110mm stepper motor




Product Description.


Specifications(Mige 110 series three phase stepper motor)



Model

FHB31122

Step Angle(°)

1.2

Length L(mm)

219

Holding torque(N.m)

20

Current (A)

6.9

Rotor inertia (g.cm2)

17400

Weight (kg)

10.7

Matched driver

HBQ30722A

Shaft diameter(mm)

19

Axis stretch(mm)

flat key 6*30

Resistance(Ω)

0.57

Inductance(mH)

2.46

Step accuracy

5%

Temperature

80 degree   Max

Environmental temperature

-20 ~ +50 degree

Insulation resistance

100MΩ   Min 500 V DC

Withstand voltage

500V AC 1 minute

Shaft Radial Play

0.06mm Max.

Shaft Axial Play

0.08 mm Max.

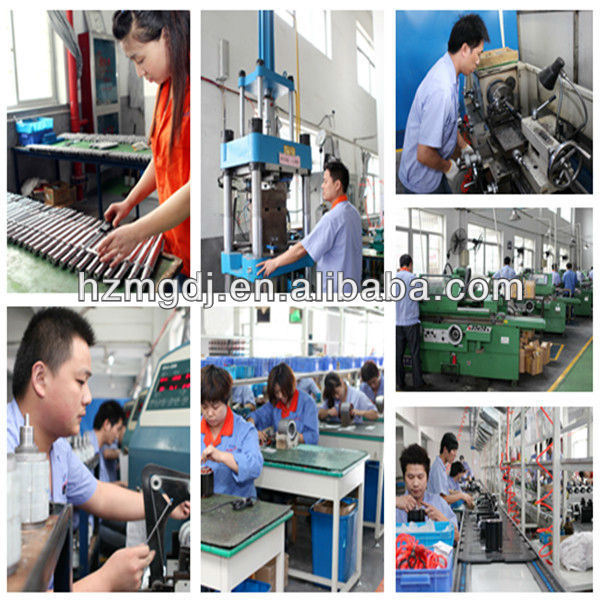

Manufacture Equipment







Testing Equipment



Products Functions









Mige electric motors are widely used in the following industries

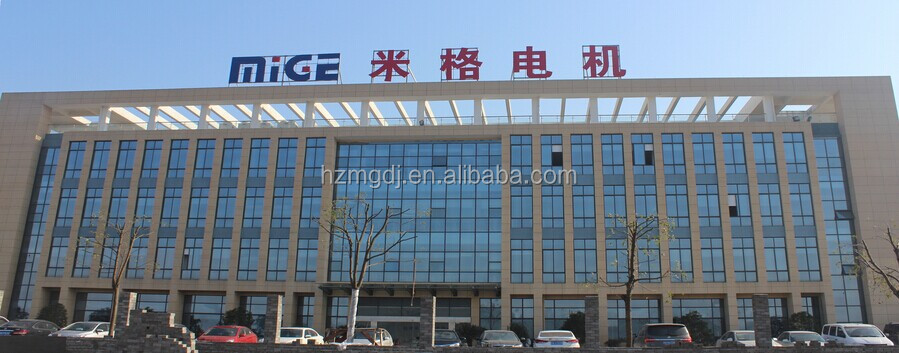

Company Information.








Brief Introduction



Hangzhou Mige Electric Co. Ltd. was founded in 2005. It is a national high-tech company, focusing in the research,development,production and sales of AC servo motor,hybrid stepper motor and driver for the global market.They have been widely used in the fields of embroidered textile, CNC machines, packaging, printing,engraving,robots and other automation equipment.





Company certification and honor









Packaging & Shipping















  FAQ.











1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.





2. Q: Do you have the products in stock?

A:  Our products are manufactured according to your order except the normal  products.





3. Q: What’s the delivery time?



A:  t usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.



4. Q: Can I choose the different brake to the motors?

A: Yes, you can choose the different kinds of brake or without brake.





5. Q: How does your factory do regarding quality control?
A: Quality is priority.
Miger  people always attach great importance to quality control from the very beginning to the end of the production.  Every product will be fully assembled and carefully tested before it's packed for shipment.

.

6. Q:What's your warranty terms?
A:  We offer different warranty time for different products. Please contact with us for detailed warranty terms.





7. Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit.  Miger has been alibaba’s Gold supplier since 2008. If you check with alibaba, you will see that we have never got any complaint from our customers.

 Contact Us.





Feel free to contact me for more information,welcome your order!
