3 Phase Stepper Motor

FOB Reference Price:Get Latest Price
$2.00 - $260.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
FHB31332
Step Angle(degrees):
1.2
Holding Torque:
50N.m
Phase:
3
Type:
Hybrid
Current / Phase:
6.9A
Certification:
CE, ISO
holding torque(N.m):
50
Current(A):
6.9
Length(mm):
318
Usage:
Universal
Speed:
Variable speed
Function:
Control
Structure:
Synchronous Motor
shape:
Square
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in plywood case or carton
Port
China

3 Phase Stepper Motor

Product Description



Specifications



This motor is a brushless, synchronous electric motor that can divide a full rotation into a large number of steps. The motor’s position can be controlled precisely, without any feedfack mechanism. Choice of motor shaft length, single or double shaft, optical encoder and planetary gearbox are available for most motors.



Step Angle Accuracy: ±5%(full step, no load)
Temperature Rise: 80°C Max
Ambient Temperature: -20°C ~ +50°C
Insulation Resistance: 100M Ω Min.500VDC
Dielectric Strength: 500V AC for one minute
Shaft Radial Play: 0.06mm Max.(450g-load)
Shaft Axial Play: 0.08mm Max.(450g-load)



Model

Step Angle( °)

Length L (mm)

Holding torque(N.m)

Current (A)

Rotor inertia(g.cm²)

Shaft diameter(mm)



FHB31332



1.2



318



50



6.9



55780



24

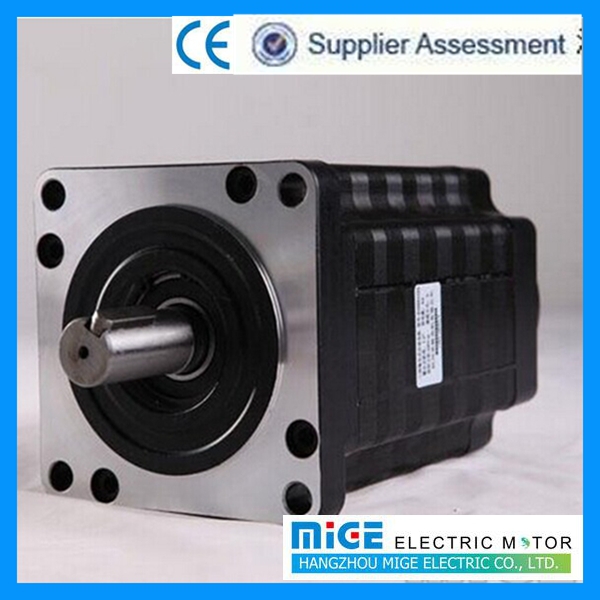

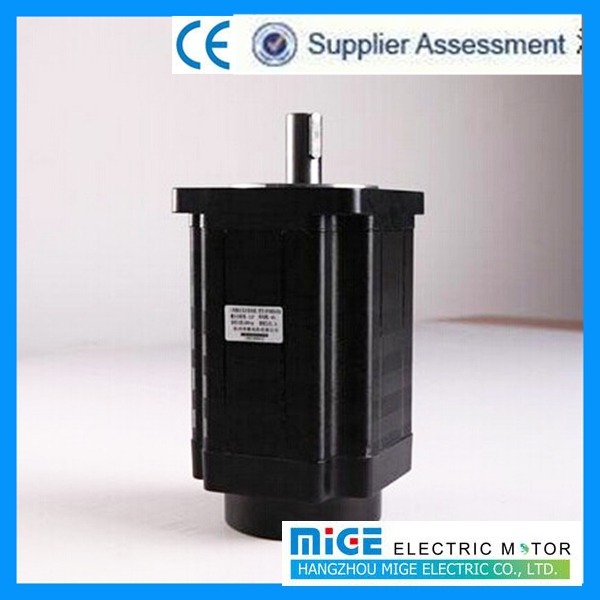

products' show



Cetifications

usage



Packaging & Shipping









Our Services



We can design according to clients' requirements, and we provied  maintenance services.

Other special requirements could contact with our technology to negotiate.



Company Information

 Company Honor





Promotion



FAQ





1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.





2. Q: Do you have the products in stock?

A:  Our products are manufactured according to your order except the normal  products .







3. Q: What’s the delivery time?



A:  t usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.



4. Q: Can I choose the different brake to the motors?

A: Yes, you can choose the different kinds of brake or without brake.





5. Q: How does your factory do regarding quality control?
A: Quality is priority.
Miger  people always attach great importance to quality control from the very beginning to the end of the production.  Every product will be fully assembled and carefully tested before it's packed for shipment

.

6. Q:What's your warranty terms?
A:  We offer different warranty time for different products. Please contact with us for detailed warranty terms.





7. Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit.  Miger has been alibaba’s Gold supplier since 2008. If you check with alibaba, you will see that we have never got any complaint from our customers.
