2 phase 24v dc cnc stepper controller

FOB Reference Price:Get Latest Price
$39.00 - $45.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
23HM5425 and HBQ2044D
Motor Type:
Stepper Motor
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in carton or plywood case
Port
China
Lead Time :
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 5 To be negotiated





2 phase 24v dc cnc stepper controller is a brushless, synchronous electris motor that can divide a full rotation into a large number of steps. The motor's position can be controlled precisely, without any feedback mechanism.



2 phase 24v dc cnc stepper controller Parameters:



Model

23HM5425

Step Angle(°)

1.8

Length L(mm)

51

Holding torque(N.m)

0.72

Current (A/phase)

3.0

Resistance(Ω)

0.74

Inductance (mH)

0.9

Rotor inertia (g.cm2)

275

Weight (kg)

0.65

Step accuracy

5%

Temperature

80°C   Max

Environmental temperature

-20°C ~ - +50 °C

Insulation resistance

100MΩ   Min 500 V DC

Withstand voltage

500V AC 1minute



Features

1, Low noise and runs smoothly

2, High performance, low price

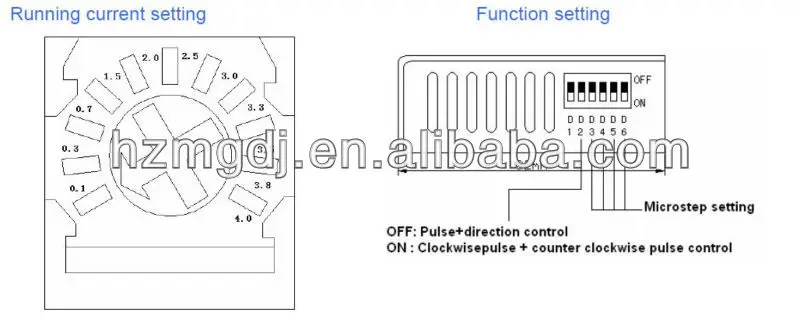

 3, Provides 12/8 kinds of micro step selection,upmost micro step can be set to 200 x,enhance resolution

 4, Special control circuit, greatly reduce noise, increase steadiness

 5, Upmost response frequence amounts to 200Kpps

6, Once the pulse stops for 100ms,the phase current will automatically cut by half

 7, Bipolar constant current chopper control

 8, Photocoupler isolated input/output

 9, Drive current range from 0.1A/phase~4.0A/phase

10, can match two phase hybrid step motors whose rated current under 4.0A  11, Single power input, voltage range from DC12-40V

 12, Protection circuit , Overheat protection. Over current, under voltage protection

 13, Small in size . compact driver, its dimension is only 25x136x92mm3.

14, Typical application Carve machine, laser labeling machine,laser internal carve machine.



Please contact with us for more detailed technical information.



We can design according to clients' requirement.
