nema23 DC24V 1.8 degree stepper motor

FOB Reference Price:Get Latest Price
$8.90 - $9.70 / Piece | 1 Piece/Pieces (Min. Order)
Step Angle(degrees):
1.8 degree
Holding Torque:
0.72 Nm
Lead Time:
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 9 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
F57-H51
Phase:
2
Type:
Hybrid
Certification:
CE, ISO
Current / Phase:
3.0A
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in plywood case or carton
Port
China
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 9 To be negotiated
Video Description

Nema 23 DC12V 1.8 degree stepper motor is a brushless, synchronous electris motor that can divide a full rotation into a large number of steps. The motor's position can be controlled precisely, without any feedback mechanism.



Electric Parameters:



Model

F57-H51

Step Angle(°)

1.8

Length L(mm)

51

Holding torque(N.m)

0.72

Current (A/phase)

3.0

Resistance(Ω)

0.74

Inductance (mH)

0.9

Rotor inertia (g.cm2)

275

Weight (kg)

0.65

Step accuracy

5%

Temperature

80°C   Max

Environmental temperature

-20°C ~ - +50 °C

Insulation resistance

100MΩ   Min 500 V DC

Withstand voltage

500V AC 1minute



Please contact with us for more detailed technical information.



We can design according to clients' requirements.

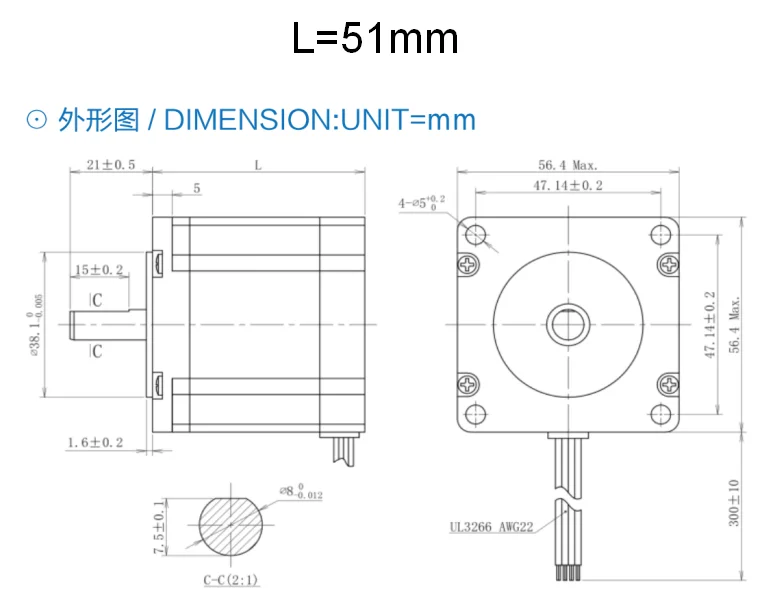

F57-H51

42&57



Package
