110BYGH stepper motor

FOB Reference Price:Get Latest Price
$55.00 - $75.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Mige
Model Number:
FHB31115
Phase:
3
Type:
Permanent Magnet
Certification:
CE
Step Angle(degrees):
1.2 degree
Holding Torque:
12Nm
Current / Phase:
6.0A
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in wooden case or carton
Port
China
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 To be negotiated

110BYGH stepper motor has such advantage as high efficiency,energy-saving,low noise, low vibration, "high start torque", "low start current" and reliable performance.They are easy for installation and maintenance



 Step Engine Specifications:



Model

FHB31115

Step Angle(°)

1.2

Length L(mm)

148

Holding torque(N.m)

12

Current (A)

6.0

Rotor inertia (g.cm2)

9720

Weight (kg)

6.6

Shaft diameter (mm)

19

Shaft length (mm)

40

Step accuracy

5%

Temperature

80 degree   Max

Ambient Temperature

-20 ~  +50 degree

Insulation resistance

100M Ω   Min 500 V DC

Dielectric Strength

500V AC 1 minute

Shaft Radial Play

0.06mm Max.(450g-load)

Shaft Axial Play

0.08mm Max.(450g-load)



Please contact with us for more detailed technical information.



We can design according to clients' requirements.

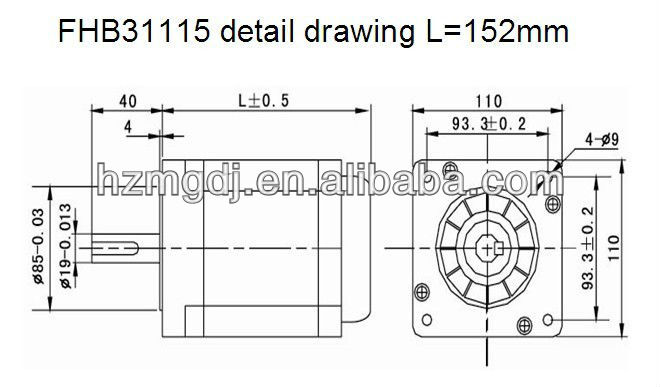

FHB31115 detail drawingFHB311XX wiring diagramFHB311XX frequency-torque characteristics3 phase stepper motor instal front cover3 phase stepper motor instal rear cover3 phase stepper motor testing 13 phase stepper motor testing 2PackageManufacturing FacilitiesInspection and Testing CapabilitiesPromotionTeam Entertainment
