nema23 unipolar micro step motor

FOB Reference Price:Get Latest Price
$15.00 - $20.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
FHB368
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packed in plywood case or carton
Port
China

Nema 23 unipolar motor has such advantage as high efficiency,energy-saving,low noise, low vibration, "high start torque", "low start current" and reliable performance.They are easy for installation and maintenance.



Nema 23 unipolar motor Specifications:



Model

FHB368

Step Angle(°)

1.2

Length L(mm)

76.4

Holding torque(N.m)

1.5

Current (A)

5.8

Rotor inertia (g.cm)

380

Weight (kg)

1.1

Shaft diameter(mm)

8.0

Shaft extension(mm)

feather key 3x15

Step accuracy

5%

Temperature

80 degree Max

Environmental temperature

-20~  +50 degree

Insulation resistance

100MΩ   Min 500 V DC

Withstand voltage

500V AC 1 minute

Shaft Radial Play

0.06mm Max (450g-load)

Shaft Axial Play

0.08mm Max (450g-load)



Please contact with us for more detailed technical information.



We can design according to clients' requirements.

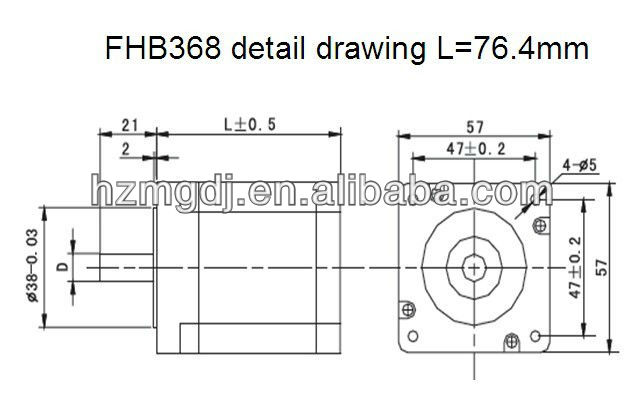

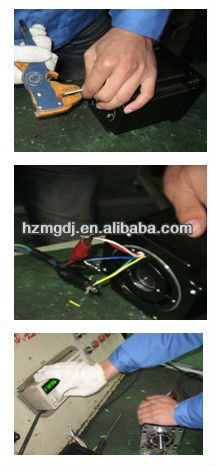

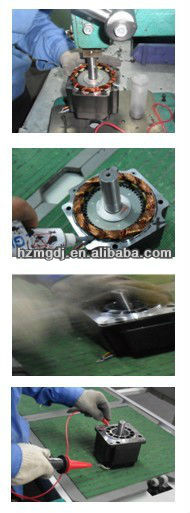

FHB368 detail drawingFHB36X wire connectionFHB36X frequescy-torque characteristicsFHB36X magnetizingFHB36X installing3 phase stepper motor instal front cover3 phase stepper motor testingPackageManufacturing FacilitiesInspection and Testing CapabilitiesPromotionTeam Entertainment
