cnc router servo motor kit 2.3kw 1500rpm

FOB Reference Price:Get Latest Price
$195.00 - $265.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
130ST-M15015
Usage:
Universal
Protect Feature:
Waterproof
Function:
Driving
Structure:
Synchronous Motor
Phase:
Three Phase
Speed:
Variable Speed
Power:
AC
Shape:
Square
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packed in wooden box or carton
Port
China
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 To be negotiated



Servo system has a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.



They have been widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.



Motor model

130ST-M15015

Rated power(kw)

2.3

Rated current(A)

9.5

Rated speed(rpm)

1500

Rated torque(N.m)

15

Peak torque(N.m)

30

Voltage constant (V/1000r/min)

114

Moment coefficient(N.m/A)

1.58

Rotor inertia(Kg.)

2.77*103

Resistance line-line (Ω)

1.1

Inductance line-line(mH)

4.45

Electrical time constant(ms)

4.05

Encoder line(PPR)

2500

Pole-pairs

4

Insulation class

Class B (130)

Grade of Protection

IP65

The operating of Evironmental conditions

Temperature

-20 ~ + 50

Humidity

Below 90%RH No dewing

Environment

Far away active gas, combustible gas, oil drop, ash.



Please contact with us for more detailed technical information.



We can design according to clients' requirement.



130ST-M15015 Detail Drawing

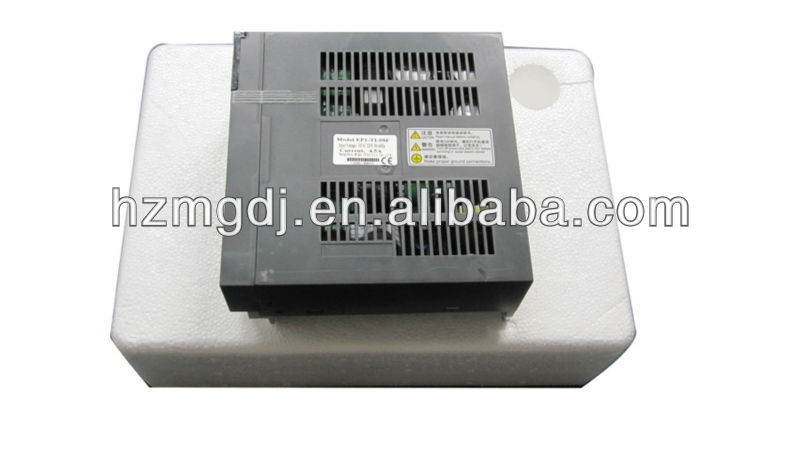

EP1 and EP2 driver connection



EP1- and EP2 driver 5EP1 and EP2 driver 1EP1 and EP2 driver 3
