20Nm 220V Stepper Motor with Extension Shaft

FOB Reference Price:Get Latest Price
$105.00 - $145.00 / Piece | 1 Piece/Pieces (Min. Order)
Step Angle(degrees):
1.2
Holding Torque:
20NM
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
FHB31318
Phase:
3, Three Phase
Type:
Hybrid
Certification:
CE
Current / Phase:
4A
Usage:
Universal
Protect Feature:
Enclosed
Function:
Control
Structure:
Synchronous Motor
Speed:
Variable Speed
Power:
AC
Shape:
Square
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packed in plywood case or carton
Port
China
Lead Time :
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 7 To be negotiated



Stepper Motor with Extension Shaft has such advantage as high efficiency,energy-saving,low noise, low vibration, "high start torque","low start current" and reliable performance.They are easy for installation and maintenance



Stepper Motor with Extension Shaft Specifications:



Model

FHB31318

Step Angle(°)

1.2

Length L(mm)

183

Holding torque(N.m)

20

Current (A)

4

Rotor inertia (g.c)

26700

Weight (kg)

14.1

Shaft Length(mm)

140

Shaft diameter(mm)

19

Step accuracy

5%

Temperature

80   Max

Environmental temperature

-20 ~  +50

Insulation resistance

100MΩ   Min 500 V DC

Withstand voltage

500V AC 1 minute

Shaft Radial Play:

0.06mm Max.

Shaft Axial Play

0.08mm Max.



Please contact with us for more detailed technical information.



We can design according to clients' requirement.

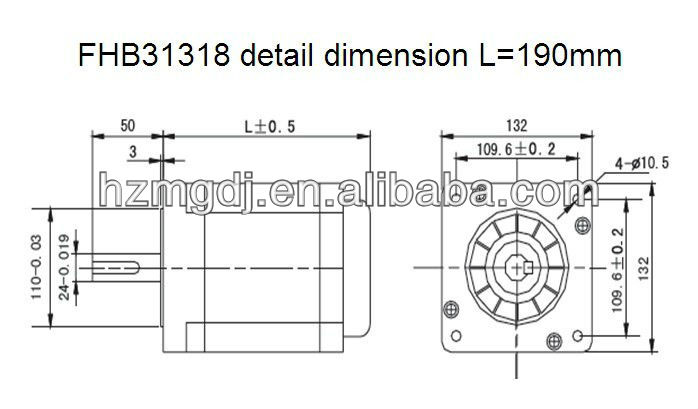

FHB31318 detail dimension

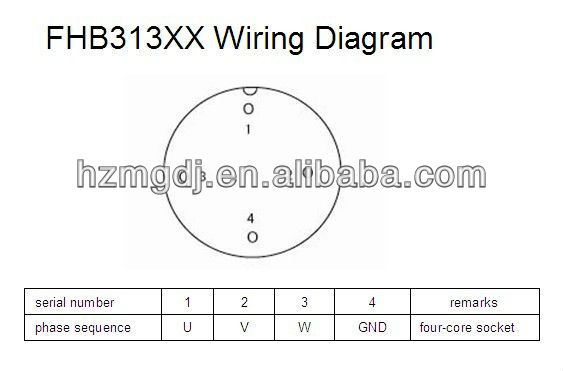

FHB313XX wiring diagramFHB313XX frequency-torque characteristics3 phase stepper motor instal rear cover3 phase stepper motor testing 13 phase stepper motor testing 2PackageInspection and Testing CapabilitiesManufacturing FacilitiesPromotionTeam Entertainment
