85mm hybrid stepping motor

FOB Reference Price:Get Latest Price
$43.00 - $59.00 / Piece | 1 Piece/Pieces (Min. Order)
Step Angle(degrees):
1.2
Holding Torque:
6Nm
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
FHB3913
Phase:
3, Three Phase
Type:
Permanent Magnet
Certification:
CE, ISO
Current / Phase:
5.8A
Usage:
Universal
Protect Feature:
Waterproof
Function:
Control
Structure:
Synchronous Motor
Speed:
Variable Speed
Power:
AC
Shape:
Square
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packed in plywood box or carton
Port
China
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 To be negotiated
Video Description

 85mm hybrid Stepping motor



General Specifications:



Step Angle Accuracy: ±5%(full step, no load)
Temperature Rise: 80°C Max
Ambient Temperature:  -20°C ~ +50°C
Insulation Resistance: 100M Ω Min.500VDC
Dielectric Strength: 500V AC  one minute
Shaft Radial Play: 0.06mm Max.(450g-load)
Shaft Axial Play: 0.08mm Max.(450g-load)





Motor Model

FHB3913

Step Angle

1.2 degree

Length

125 mm

Holding Torque

6 Nm

Current

5.8 A/phase

Resistance

0.9 Oms

Inductance

2.17 mH

Rotor Inertia

3480 g.cm2

Weight

3.8 KG

Shaft Diameter

14 mm

Lead Wire

3 No.



Please contact with us for more detailed technical information.



We can design according to clients' requirement.

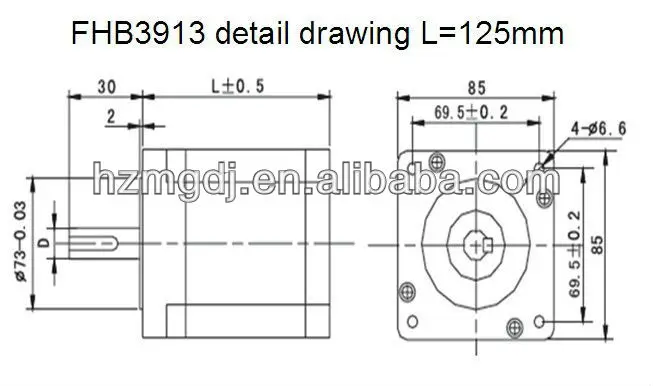

FHB3913 detail drawing

86
