110mm 1.5kw waterproof cnc brushless servo motor

FOB Reference Price:Get Latest Price
$115.00 - $160.00 / Piece | 1 Piece/Pieces (Min. Order)
Output Power:
1.5kw
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
mige
Model Number:
110ST-M05030
Type:
Servo Motor
Frequency:
50~60hz
Protect Feature:
Waterproof, IP65
Phase:
Three-phase, Three Phase
Certification:
CE
AC Voltage:
208-230 / 240 V
Efficiency:
IE 3
Usage:
Universal
Function:
Control
Structure:
Synchronous Motor
Speed:
Variable Speed
Power:
AC
Shape:
Square
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in plywood case or carton
Port
China
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 To be negotiated
Video Description

110mm 1.5kw AC servo motor technical data



Motor model

110ST-M05030

Rated power

(KW)

1.5

Rated current(A)

6

rated speed(rpm)

3000

Rated torque(N.m)

5

Peak torque(N.m)

15

Voltage constant (V/krpm)

62

Moment coefficient(N.m/A)

0.83

rotor inertia(Kg.)

0.63*103

Resistance line-line  (Ω)

1.03

Inductance line-line  (mH)

3.43

Electrical time constant(ms)

3.33

Weight(kg)

6.1

Encoder line(PPR)

2500

Pole-pairs

 4

Insulation class

Class B (130)

Grade of Protection

IP65

The operating of Evironmental conditions

Temperature

-20 ~ +50

Humidity

Below 90%RHNo dewing

Environment

Far away active gas,combustible gas, oil drop,ash.



Please contact with us for more detailed technical information.



We can design according to clients' requirement.

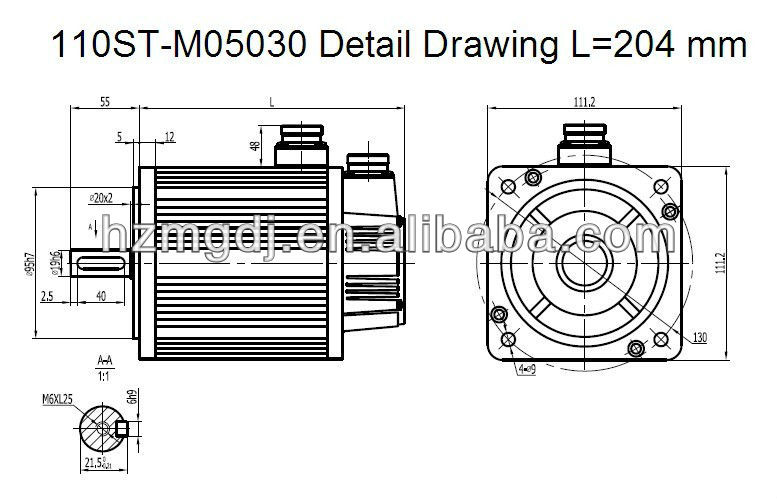

110ST-M05030 Detail Drawing
