Stepping Motor

FOB Reference Price:Get Latest Price
$23.00 - $35.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
mige
Model Number:
FHB86-65
Phase:
2, Three Phase
Type:
Permanent Magnet
Certification:
CE
Step Angle(degrees):
1.8
Holding Torque:
3.3Nm
Current / Phase:
2.8A
Usage:
Universal
Function:
Control
Structure:
Synchronous Motor
Speed:
Variable Speed
Power:
DC
Protect Feature:
IP54
Shape:
Square
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in plywood case or carton
Port
China
Lead Time :
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 5 To be negotiated



 Steeping Motor Size 86mmElectric Parameters:

  Step accuracy      5%

  Temperature         80 Max

  The operating of Evironmental conditions    -20 ~  + 50

Insulation resistance        100M   Ω   Min



Withstand voltage   500V  AC 1 minute



Model

    FHB86-65

Step Angle(°)

         1.8

Length  L (mm)

         65

Holding torque (N.m)

         3.3

Current (A/phase)

         2.8

Resistance  (Ω)

         1.4

Inductance (mH)

         3.9

Rotor inertia(g.c)

        1000

Weight (kg)

        1.7



Please contact with us for more detailed technical information.



We can design according to clients' requirement.

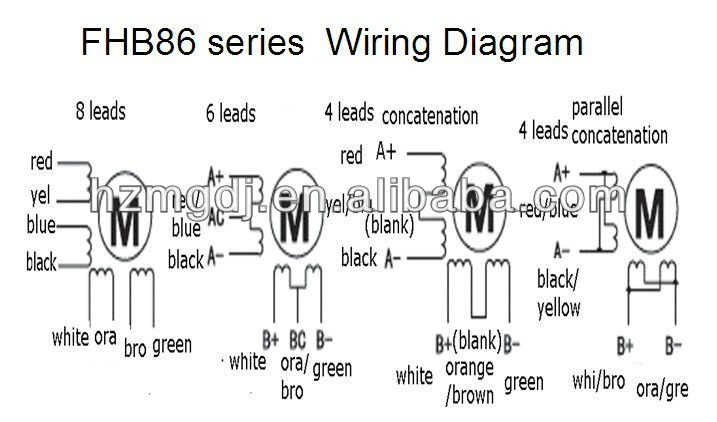

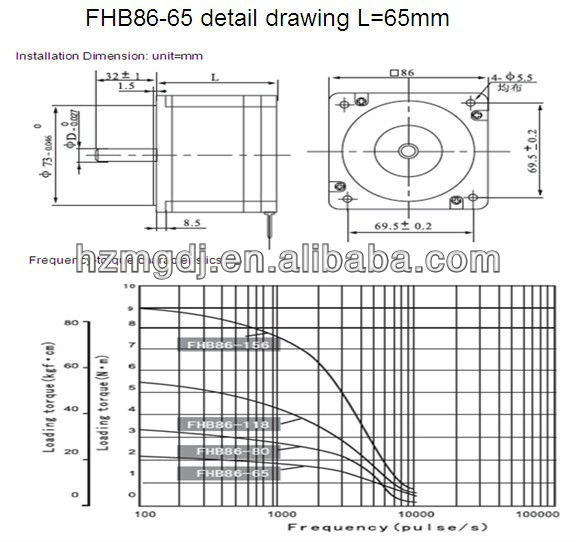

FHB86-65 detail drawingFHB86 series wiring diagram2 phase stepper motor spare partsPackage
