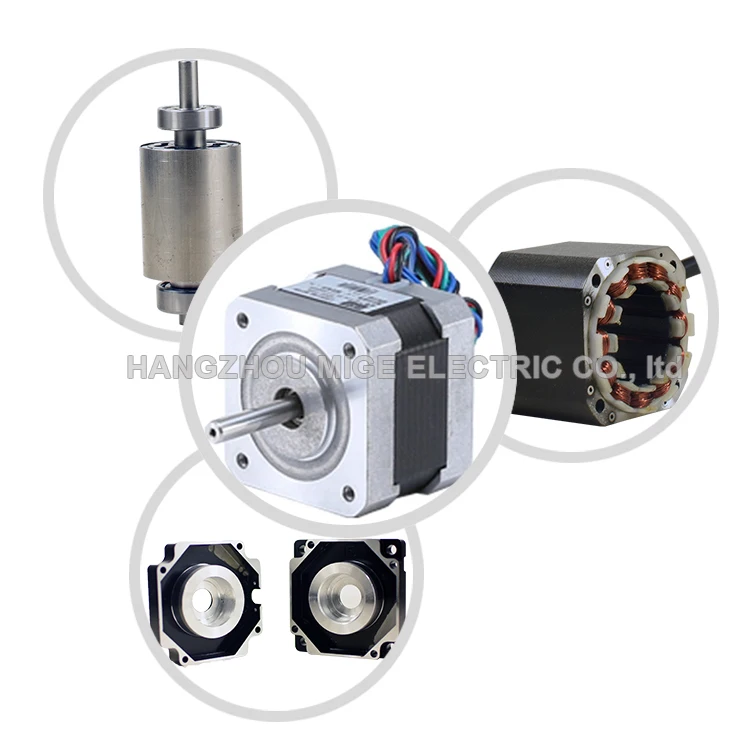

1.8 degree nema17 hybrid stepper motor

FOB Reference Price:Get Latest Price
$6.50 - $6.90 / Pieces | 1 Piece/Pieces (Min. Order)
Step Angle(degrees):
1.8 degree
Holding Torque:
0.32 NM
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
F42-H47
Phase:
2
Type:
Hybrid
Current / Phase:
1.2 A
Certification:
CE
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in carton or plywood case
Port
China
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 To be negotiated
Video Description

1.8 degree nema17 hybrid stepper motor is the brushless, synchronous electris motor that can divide a full rotation into a large number of steps. The motor's position can be controlled precisely, without any feedback mechanism.



Electric Parameters:



Model

F42-H47

Step Angle(°)

1.8

Length L(mm)

47

Holding torque(N.m)

0.32

Current (A/phase)

1.2

Resistance(Ω)

3.3

Inductance (mH)

2.8

Rotor inertia (g.cm2)

68

Weight (kg)

0.35

Step accuracy

5%

Temperature

          80 degree   Max

Environmental temperature

         -20 ~ + 50 degree

Insulation resistance

         100MΩ   Min 500 V DC

Withstand voltage

         500V AC 1minute



Please contact with us for more detailed technical information.



We can design according to clients' requirements.
